5L water bottle liner filling machine 5L water bottle liner filling machine

Liner type Water Filling Machine / Bottling Equipment
The production line includes auto washer, auto filler, auto capping and conveyor etc.
The key parts for washing ,filling and sealing are made of high quality stainless steel,with the features or advanced technology ,completed system,reliable performance,easy in operation.etc.

Capacity: 500-1200 Bottles per hour (BPH)
Automatic machine
CE SGS certificate

Share this:
  • Model: QSG-1200
  • Brand: MODERN PACK
  • Code: 8422301090
  • Product Description

3-in-1 Linear type automatic 5L Bottle Mineral Water Washing Filling Capping Machine/line

Liner Washing Filling Capping Machine Feature

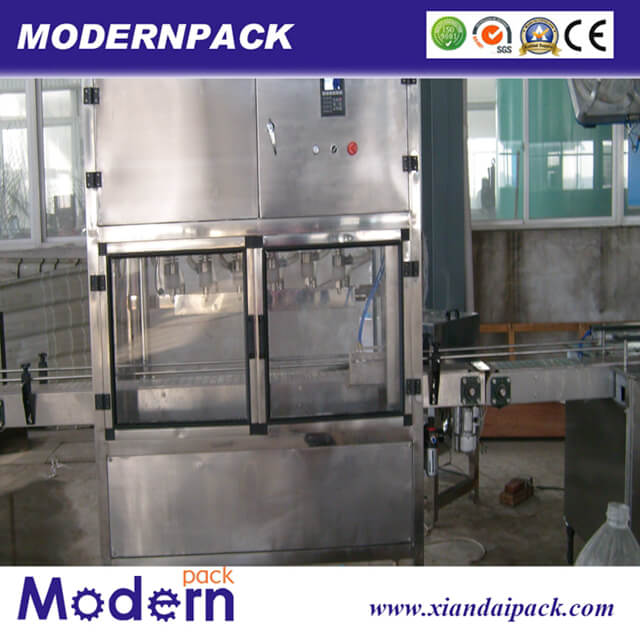

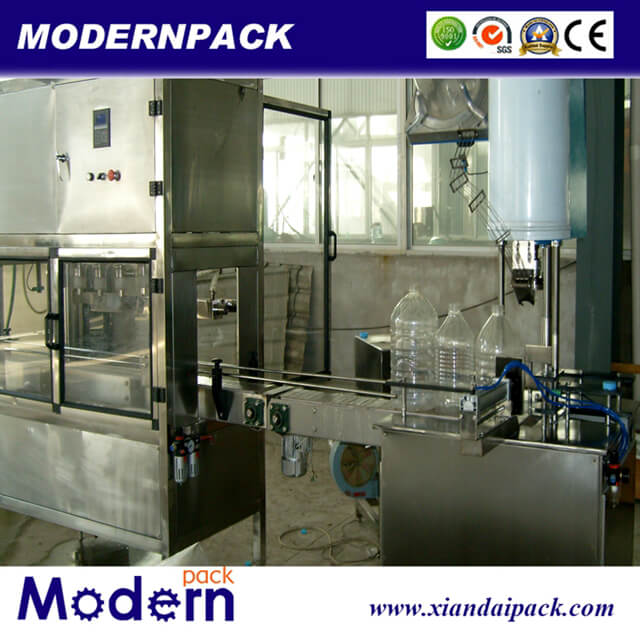

This separately washing filling capping machine has the automatic washing machine,  filling machine, automatic capping machine and  conveyor and so on.
The main parts of the washing, filling and capping machine are adopt stainless steel with the function of advanced technologies, perfect structure, reliable performance and convenient operation.

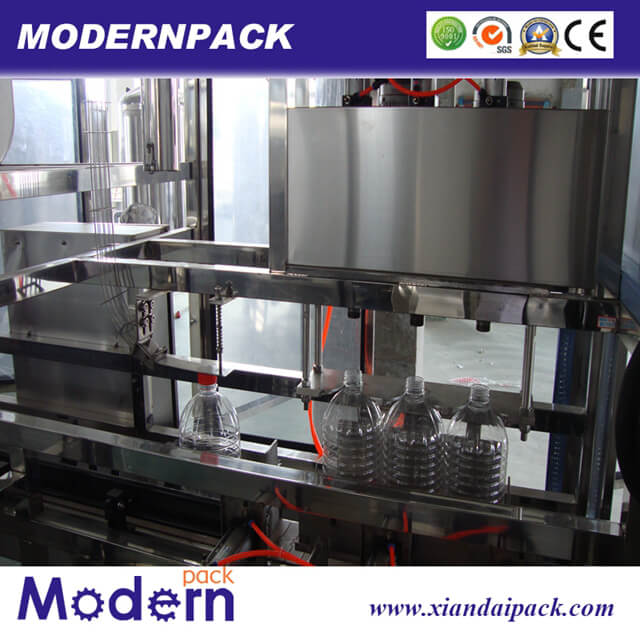

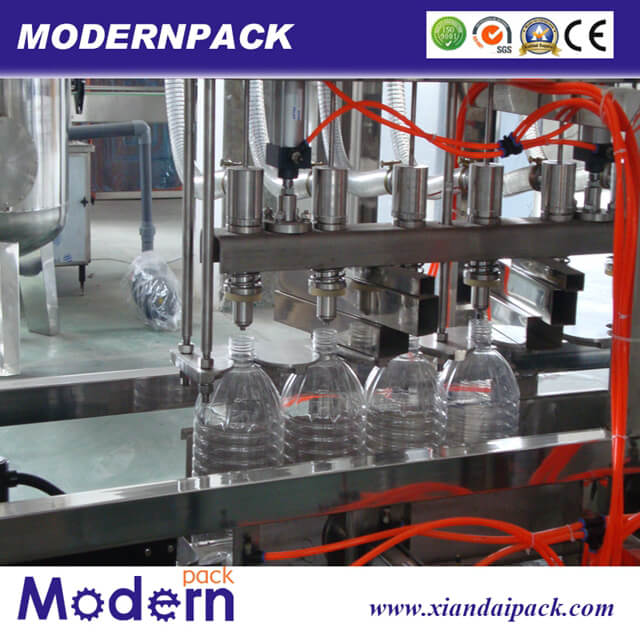

The equipment is suitable for producingPure Water, tea, juice and other beverages. With the press type filling theory, we can fill the material quickly, control the liquid level steadily and with no leaking. Spring type pliers for washing the bottles 180° reversed along with the track. Capping the cap with the theory of magnetic torque force, it can seal the cap perfectly and no damage to the cap.

Washing heads468
Filling heads468
Capping heads112
Volume (L)3000ml-10000ml (can by the order)
suitable bottle specification(mm)φ=120-200 H=170-450 (can by the order)
Capacity (BPH)400-500600-7001000-1200
Washing  pressure(kg/cm2 )0.3
Filling temperature5-50 C
Gas pressure (mpa)0.4-0.6
Gas consumption (m3/min)0.6
Motor power(Kw)
Rated voltage(V)380V/50Hz (can by the order)
Outline dimension(mm)4000×1200×21505000×1200×20006000×1200×2000
