Full Automatic Glass Bottle Packing Machine Full Automatic Glass Bottle Packing Machine

Share this:
  • Model: zzx
  • Brand: modernpack
  • Code: 84223010
  • Product Description

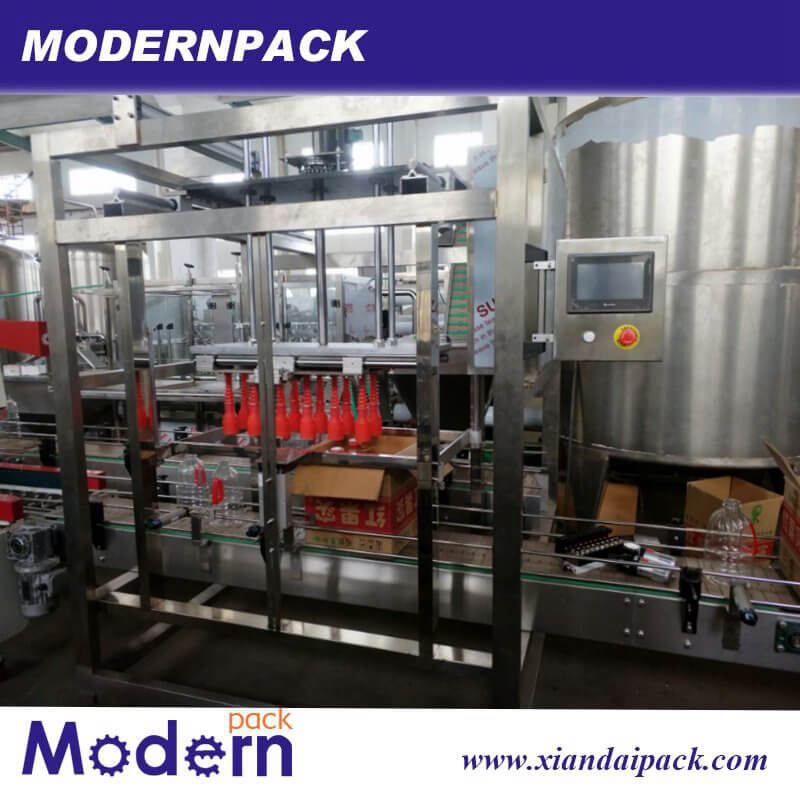

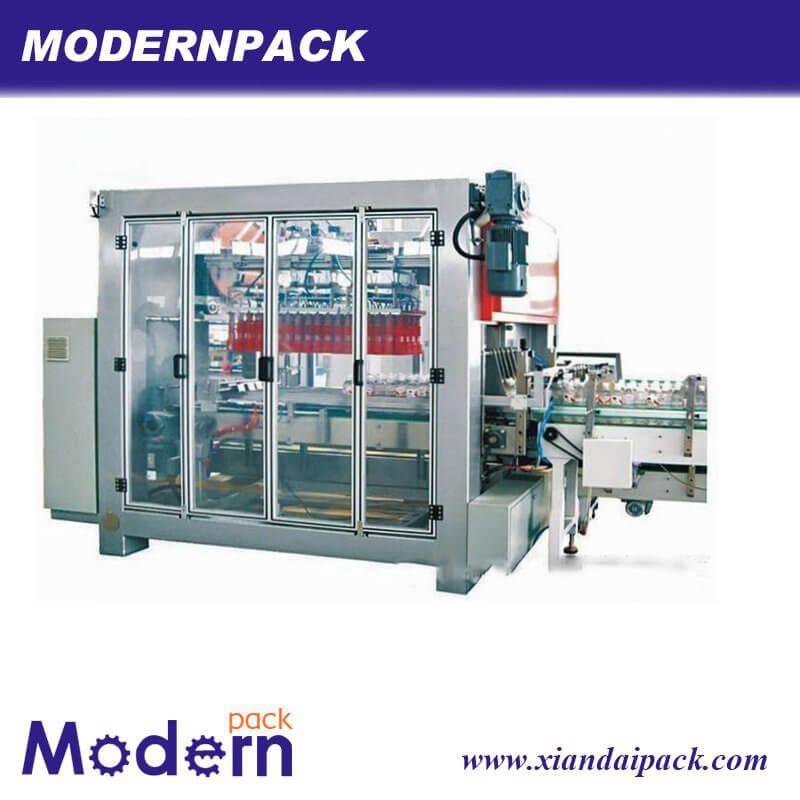

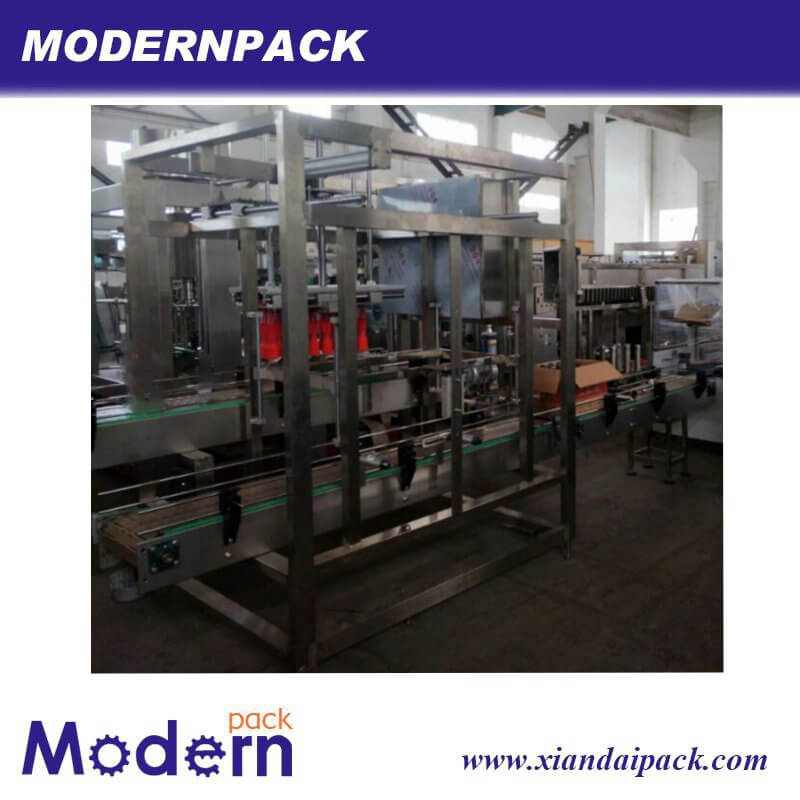

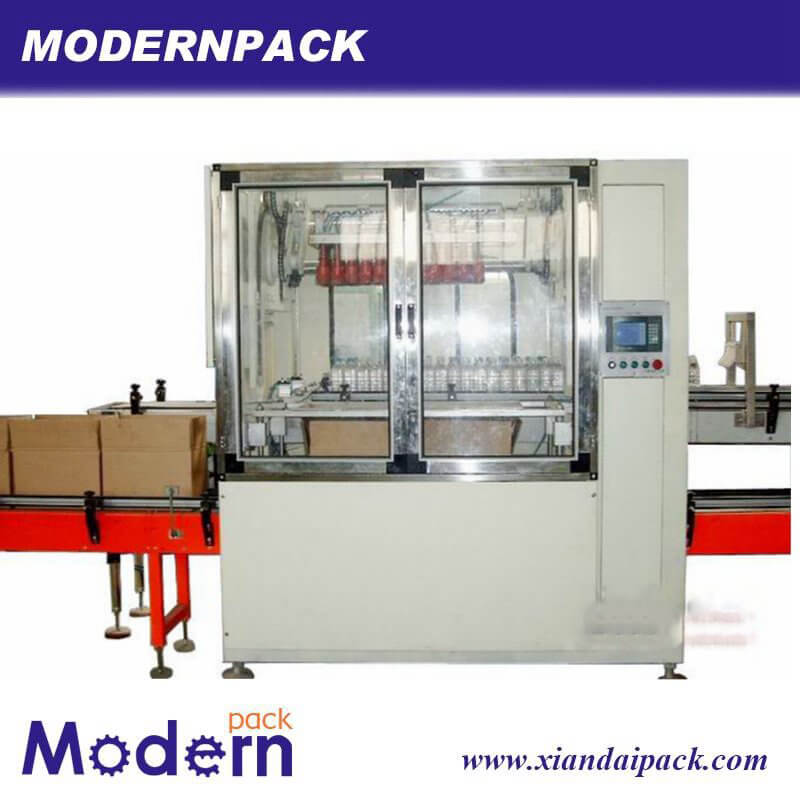

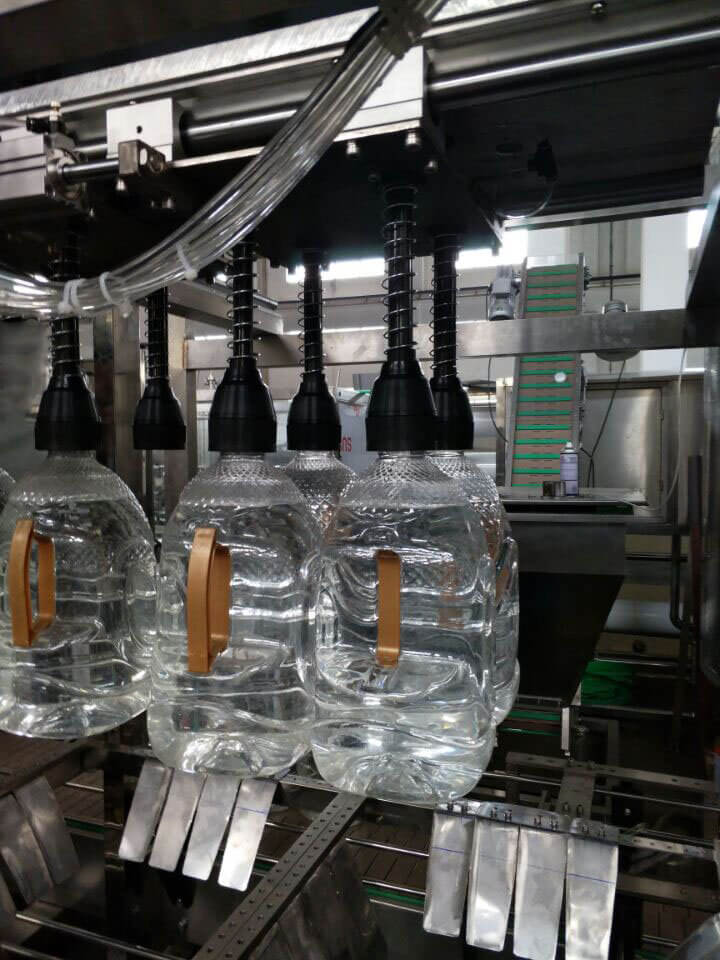

This equipment is a fully automatic boxing machine, which adopts high-speed distribution device to package various containers. It is a packing equipment for shaping and arranging packages, loading them into open cartons, and completing the action of dry glue sealing. All steps are completed automatically. Plastic flat bottle, round bottle, shaped bottle, all kinds of glass bottles and so on, and also suitable for packing box with partition board. A bottle clamp (built in rubber, to prevent damage to the bottle body) is clamped into the bottle body and put into the open carton. When the head is lifted, the carton will automatically exit and sent to the box sealing machine. The machine is controlled by PLC and touch screen, and there is a safety device that is short of bottle alarm, no bottle and no packing. This equipment is easy to operate and requires less personnel. It is an essential equipment for automatic production of scale.
1, The supply bottle part of the equipment is divided into bottles from the transport network, and enters the packing machine.
2. All the electrical components are well-known brand, the whole machine performance is stable and reliable.
3. At the same time, the paper carton is synchronously sent to each group by the suction cardboard mechanism.
4. Through the coordination of the equipment to complete the packaging of the products, with multiple safety protection devices, the equipment is safe and reliable.
5, PLC program manipulation, simple operation, stable operation, ensure that each package is accurate, qualified and beautiful, and can be widely used in beverage, beer, chemical, food, medicine and other industries.
6, the packing speed is fast, it is suitable for the automatic packing operation of large volume and high speed line.

Technical parameters:

Packing speed 6-15 cases / min
Applicable products all kinds of bottled / barreled products
Working pressure 0.5~0.7MPa
Air consumption 1m3/min
Power 220/380VAC, 50-60Hz
Power 4.5KW
Shape size 2230 x 1700 x 2500mm
Weight 1000KG

Main electrical configuration
PLC: SIEMENS, Schneider, MITSUBISHI and so on
Touch screen: SIEMENS, Schneider, MITSUBISHI, etc.
Variable frequency governor: SIEMENS, Schneider, MITSUBISHI and so on
Pneumatic components:.
Motor: Taiwan brand motor
