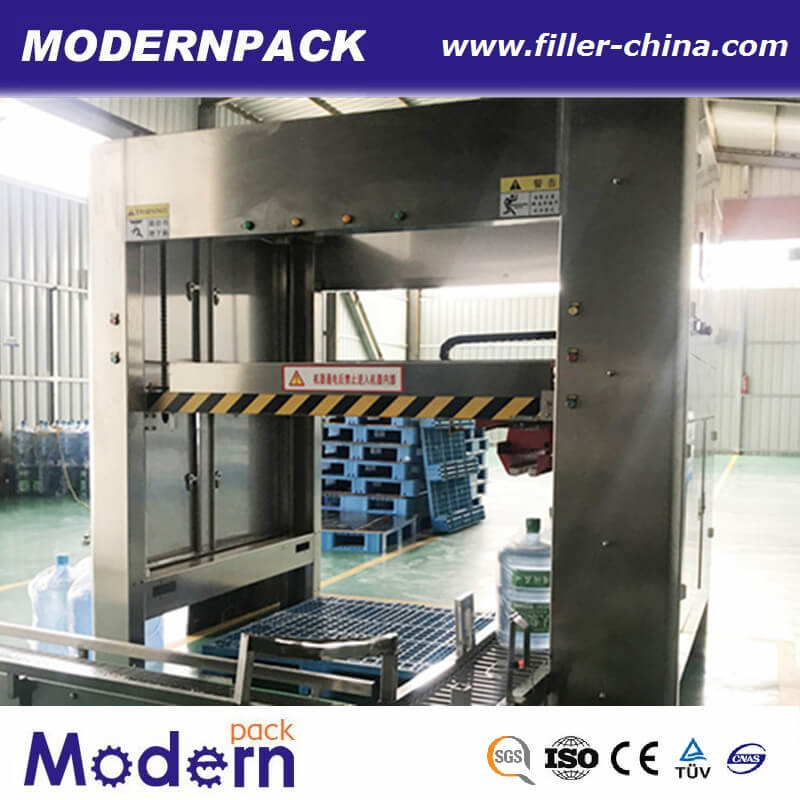

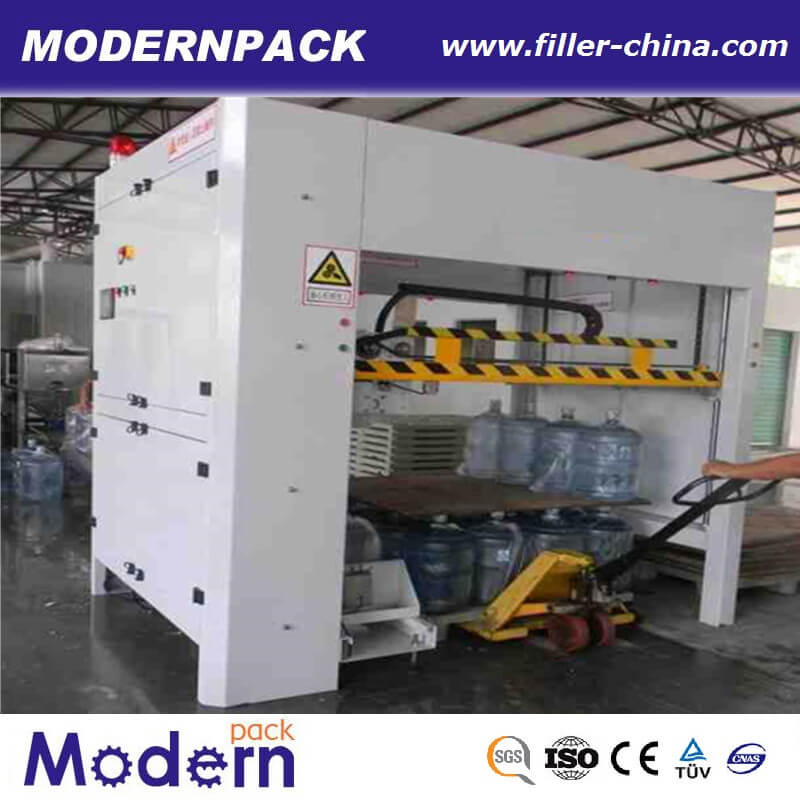

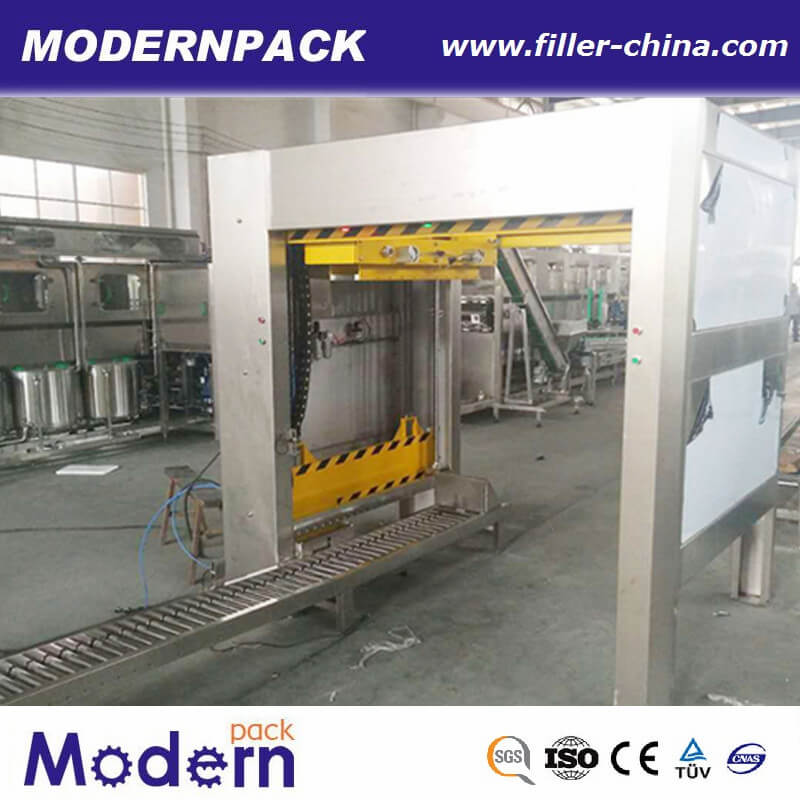

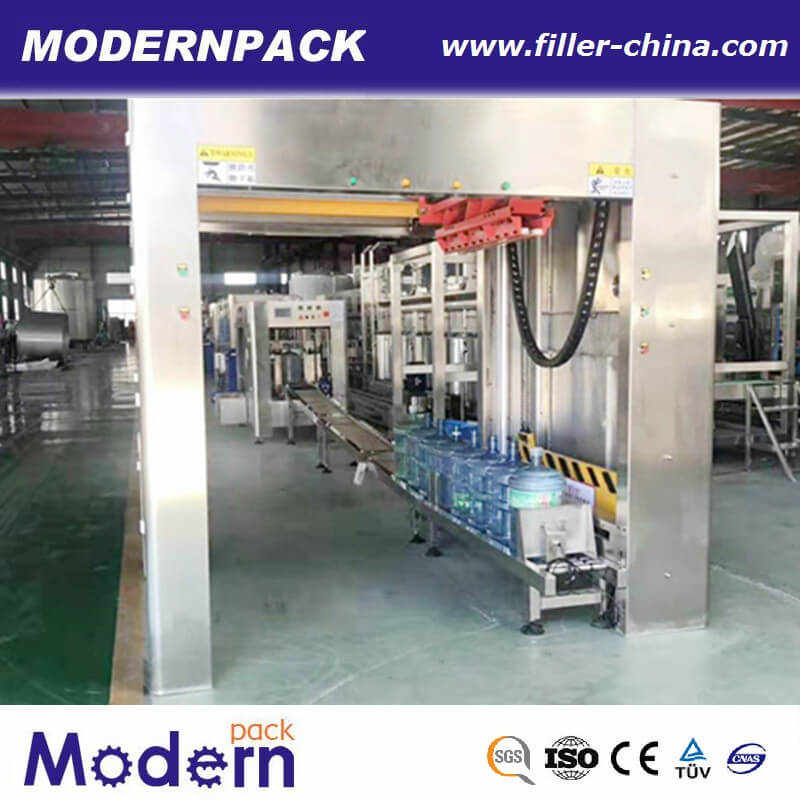

Full Automatic Palletizer for gallon bottle
In view of the increasing shortage of labor force and the shortage of labor resources in various medium and large drinking water purification plants, we have invested a lot of manpower and material resources in the development of five gallon bucket water automatic stacking equipment through the actual investigation of most drinking water manufacturers and the requirements of some customers. The equipment covers a small area and has low operating cost. It can store 600-1200 barrels of five gallon water bottles per hour Three layers (4 * 4 = 16 barrels per layer) shall be stacked as required to facilitate transportation and storage. The whole equipment can be easily operated by only one person, which reduces the labor intensity of employees and the staffing of the whole production line to the greatest extent.
Full Automatic Palletizer for gallon bottle
In view of the increasing shortage of labor force and the shortage of labor resources in various medium and large drinking water purification plants, we have invested a lot of manpower and material resources in the development of five gallon bucket water automatic stacking equipment through the actual investigation of most drinking water manufacturers and the requirements of some customers. The equipment covers a small area and has low operating cost. It can store 600-1200 barrels of five gallon water bottles per hour Three layers (4 * 4 = 16 barrels per layer) shall be stacked as required to facilitate transportation and storage. The whole equipment can be easily operated by only one person, which reduces the labor intensity of employees and the staffing of the whole production line to the greatest extent.
Machine Parameter
Model: MD-20
Power: 380V50/60HZ 4KW
Applicable pallet: L1200 * W1200mm
Stacking speed: 12-20 barrels / min
Stacking height: less than 1800mm
Table height: 600 ± 50mm
Machine size: 2300 * 1800 * 2300mm
Usage: used for palletizing, suitable for barreled water
Technical efficiency
From the production line down to the time only one person (forklift workers) can complete! Completely take your company to a new level of automation.
The production capacity of the manipulator stacker (can work 24 hours) and high safety and reliability, the direct and indirect economic benefits of production are considerable.
Main technical features of stacker
1. The machine adopts slide way type self gravity bottle feeding, no power consumption and low energy consumption in the server state; the built-in proximity signal detection mechanism can automatically adjust the stacking speed according to the output to match the bottle filling and discharging line.
2. The bottle lifting system adopts the latest design of pneumatic opposite clamping bottle, which does not damage the bottle mouth and shrink film, does not drop the bottle, and has small gas consumption.
3. The lifting system adopts the linear bearing slider type soft connection structure, which has the functions of stable lifting speed, mechanical protection against unexpected faults, etc., and effectively guarantees the protection function of the machine under special faults.
4. The machine can stack 1-3 layers, and the number of layers can be adjusted on the touch screen to meet different needs of customers.
5. The lifting and translation positions of the machine are detected and positioned by numerical control technology, and the positions of bottle lifting and dropping are quite accurate, avoiding the defect of high failure rate caused by excessive use of positioning switch. The bucket lifting adopts servo system, and the bucket operates at high, low and medium multi-stage speeds (low-speed bottle clamping - medium high-speed operation - low-speed bottle releasing) in the process of lifting and translation, so as to make the whole operation process coordinated and stable.
6. The machine adopts the imported OMRON PLC microcomputer control and the man-machine interface operation of vinylon. The operation parameters and operation process can be adjusted freely on the touch screen, with the functions of fault shutdown, alarm, etc. Photoelectric detection and protection switch is set at the lifting position of the machine. When the machine is running, if any abnormal phenomenon is detected at the detection position, it will stop and alarm immediately, which can protect the safety of production personnel and equipment to the greatest extent.
